The Strainer Basket collects the food
and particle waste. |
 |
|
The Grease Collection Cassette captures Fat, Oil, and Grease (FOG)
for recycling.
(99.6 % pure yellow grease)
|
 |
|
goslyn™
prevents grease and particle waste from entering the drains, piping,
and sewer.
|
 |
|
Manually Controlled flush valve to
discharge settled silts.
(Typically coffee grounds)
|
 |
|
goslyn™ does not
create or store brown grease sludge. goslyn™ grease traps
are
odour free and never leak. |
|
|
goslyn™
Grease Recovery Devices
|
 |

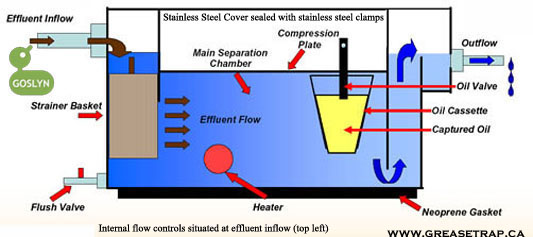

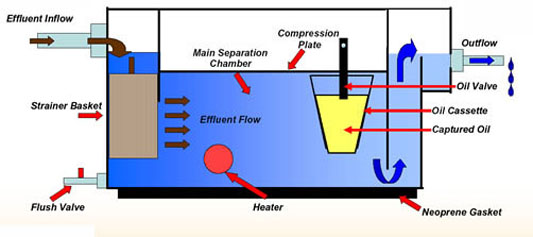

Stage
1: Strainer Basket
Effluent or dishwater enters the goslyn™ grease
trap. Food
particles are
collected in the strainer basket. The effluent then passes under
the first
baffle plate and into the separation chambers. (left) |
| Stage
2: Separation Chamber
The separation chamber was designed to allow the
water to
separate from the fats, oils, and greases (FOG) before it passes
under
the final baffle and over the weir to the outlet. (see chart) |
| Stage
3: Oil Outlet Valve
The final weir creates a hydrostatic pressure that
forces the
fats, oils, and greases (FOG) up the oil valve and into the cassette.
When all of the FOGS have been discharged, a
floating ball seals
the valve. When there is a further accumulation of
FOG, the ball
will again drop allowing the discharge into
the oil / grease cassette.
(see chart)
|
| Stage
4: Oil / Grease Cassette
(grease collector) All of the discharged fats, oils, and greases are
collected in the oil / grease cassette. The grease in the cassette is clearly
visible. Maintenance involves emptying the grease into your
recyclable oil container.
The waste yellow grease is never "out of site,
out of mind". |
| Stage
5: Immersion Heater
The effluent or dishwater is warmed up to 110° to prevent any
animal fats
from solidifying. Standard CSA Electrical Plug (see chart) |
| Stage
6: Flush Valve
Settled silts, typically coffee grounds, are discharged through the manually
controlled
valve. (left) |
 |
|
